FEATURES & APPLICATIONS
Features
- Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the drill bit jams – helping to reduce a common safety hazard
- Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
- High versatility for a wide range of drilling and chiselling applications

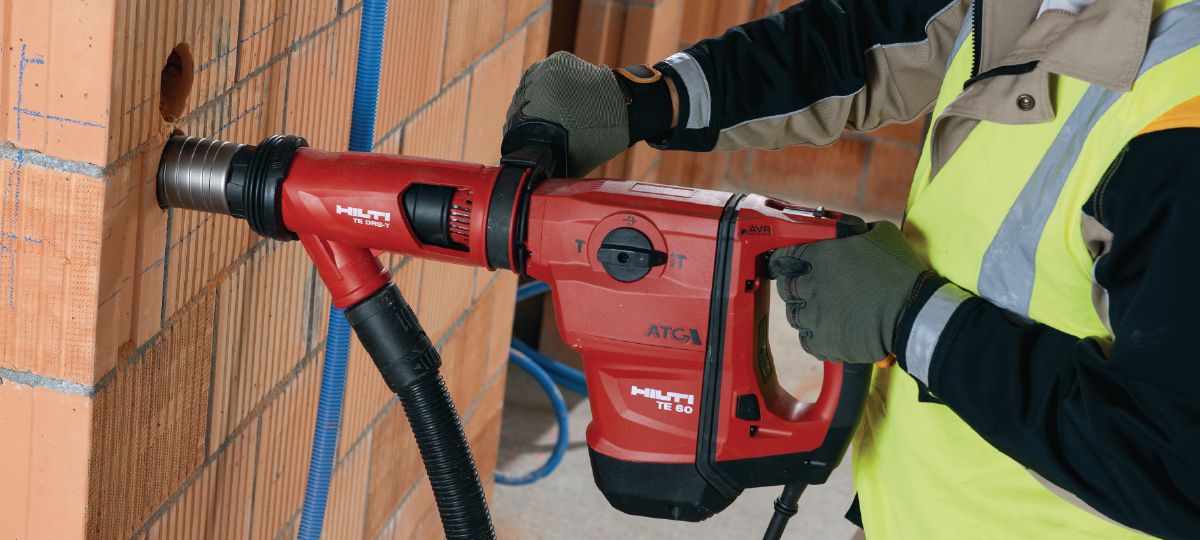

- Optional DRS-Y dust removal system collects up to 95% of dust
- Detachable supply cord for quicker and easier replacement of damaged/broken cords on the jobsite
Applications

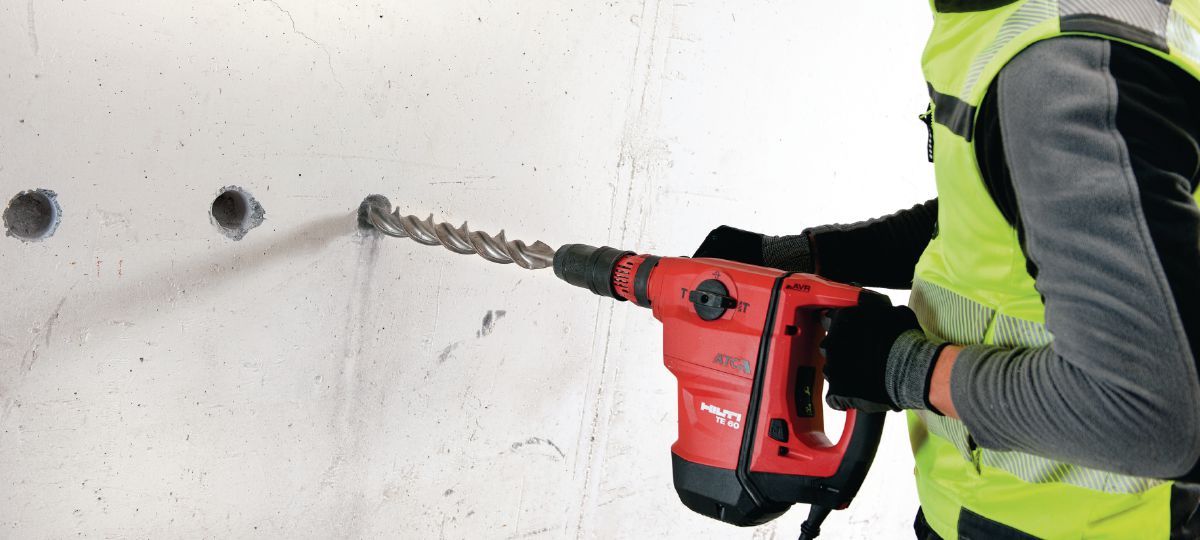

- Drilling anchor and through-holes in concrete and masonry (recommended diameter range 18-80 mm)
- Medium-duty demolition work
- Coring in masonry and concrete with TE-Y BK core bits up to 122 mm diameter
- Coring in masonry with optional DD-TE-Y-DR adapter and DD-Y PCM core bits up to 122 mm diameter
- Drilling anchor and through-holes in concrete and masonry (recommended diameter range 5/8" - 3-1/8")
PRODUCT INFORMATION
Combihammer TE 60-ATC/AVR 230 V
- Item Number: 2132184
- # of items in Package: 1
TECHNICAL DATA
- Weight according to EPTA-Procedure 01/2003 without battery: 7.8 kg
- Single impact energy: 7.8 J
- Rated current: 7.2 A
- Hammer drilling diameter range: 12 - 100 mm
- Optimum hammer drilling range: 18 - 40 mm
- Hammer drilling RPM: 340 rpm
- Full hammering frequency: 3300 impacts/minute
- Functionality: Active Torque Control (ATC), Active Vibration Reduction (AVR), Chiselling, Depth gauge, Power reduction
- Triaxial vibration value for hammer drilling into concrete (ah,HD): 7.2 m/s² 1
- Dust removal system available: TE DRS-Y, TE DRS-D, TE DRS-BK
- Triaxial vibration for chiselling in concrete: 6.2 m/s² 2
- Rated input power: 1350 W
- Dimensions (LxWxH): 493 x 115 x 293 mm
- A-weighted emission sound power level: 111 dB (A) 3
- A-weighted emission sound pressure level: 103 dB (A) 4
