FEATURES & APPLICATIONS
Features

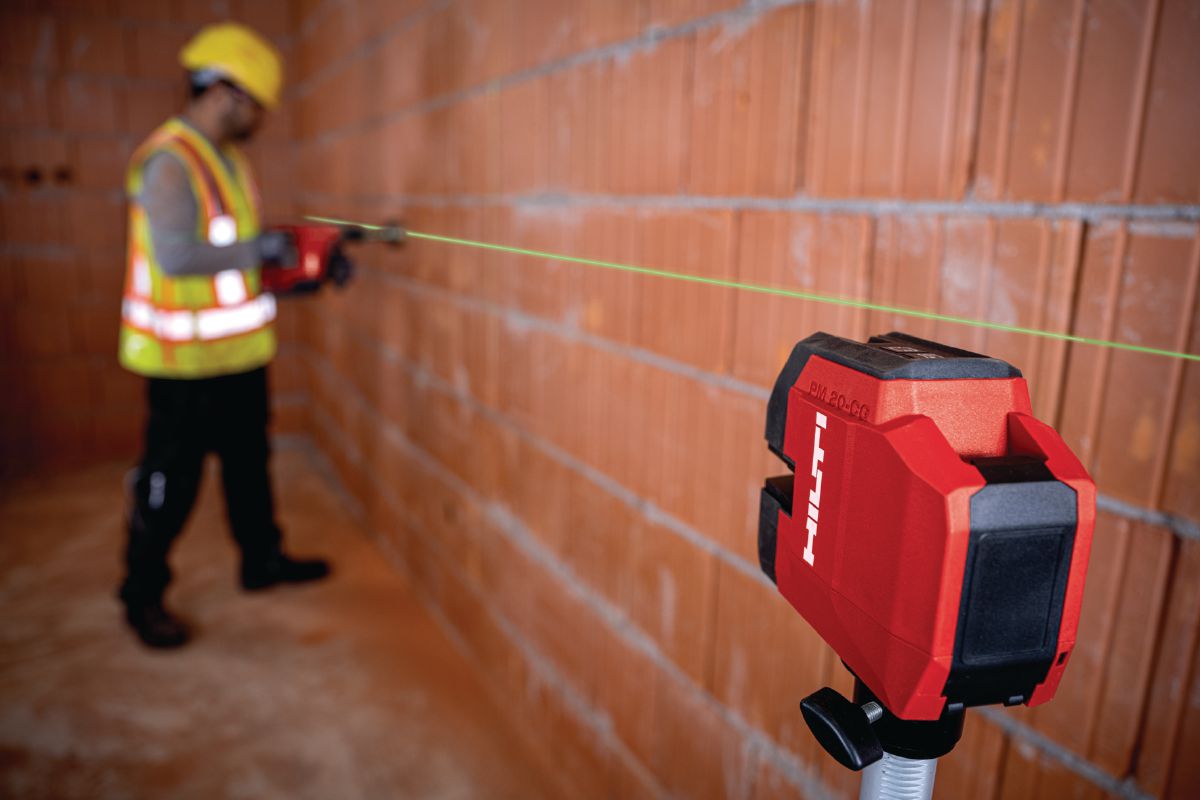

- High-speed layout – compact, self-levelling cross line laser with magnetic bracket so that you can get started with minimal setup time
- Better visibility up to 20 m – equipped with green beam for easier use indoors and in bright light
- Ultimate versatility – laser cross, five dots and slope mode make this line laser level suitable for virtually all alignment and layout work, even on inclines
- Built for jobsite conditions – IP 54 rated protection against dust and moisture and class 2 laser which requires no special precautionary measures
- Out-of-level and low-battery alerts – help prevent mistakes and unexpected downtime
Applications

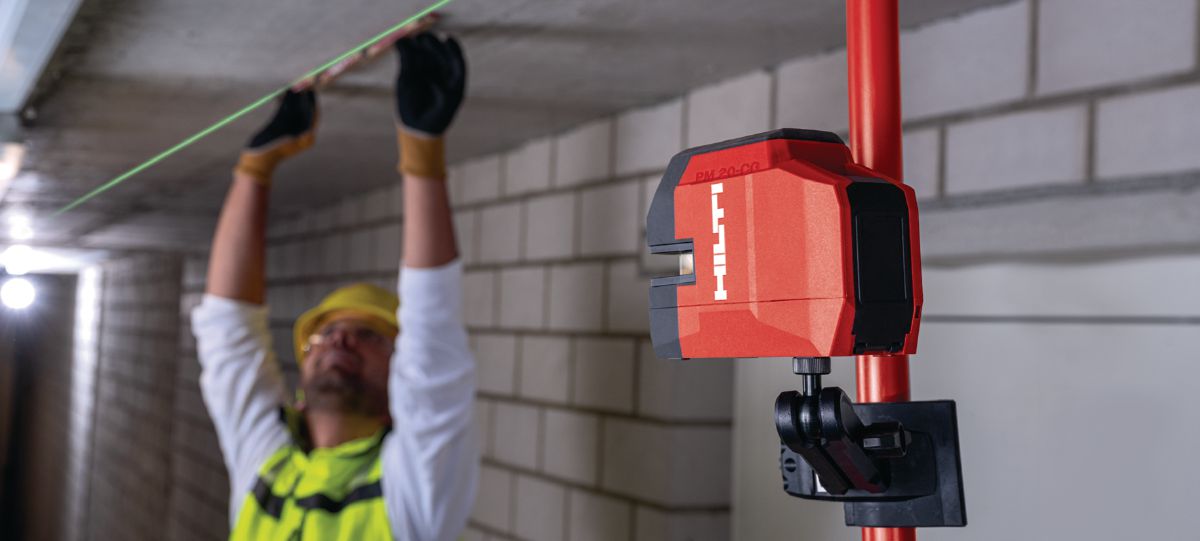

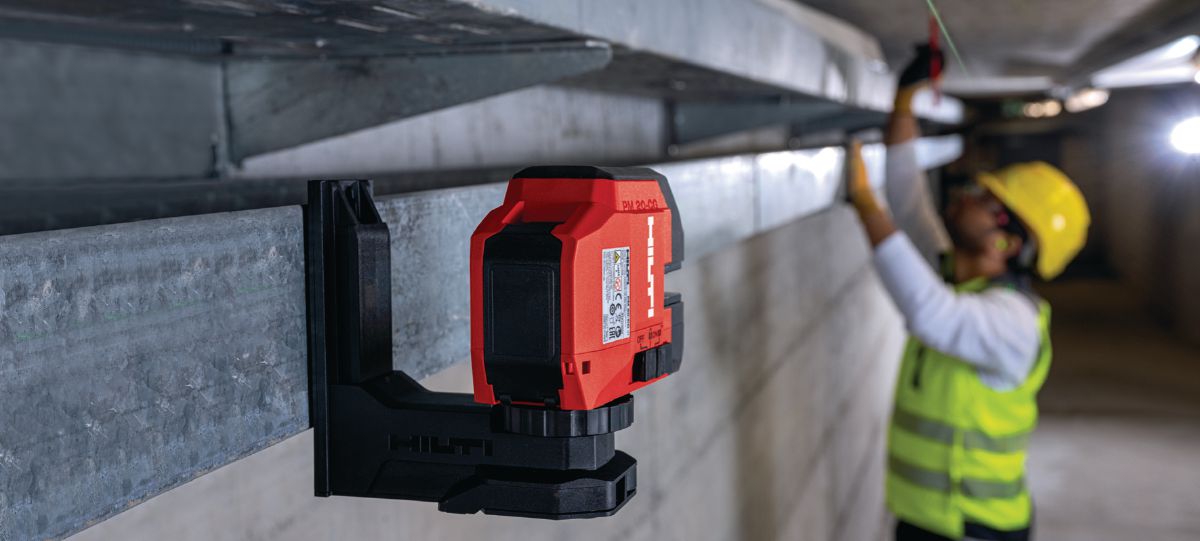

- Aligning pipes, cable trays, lighting and drywall track
- Leveling power outlets, cable trays, radiators and pipe installations
- Aligning and leveling doors, windows and handrails

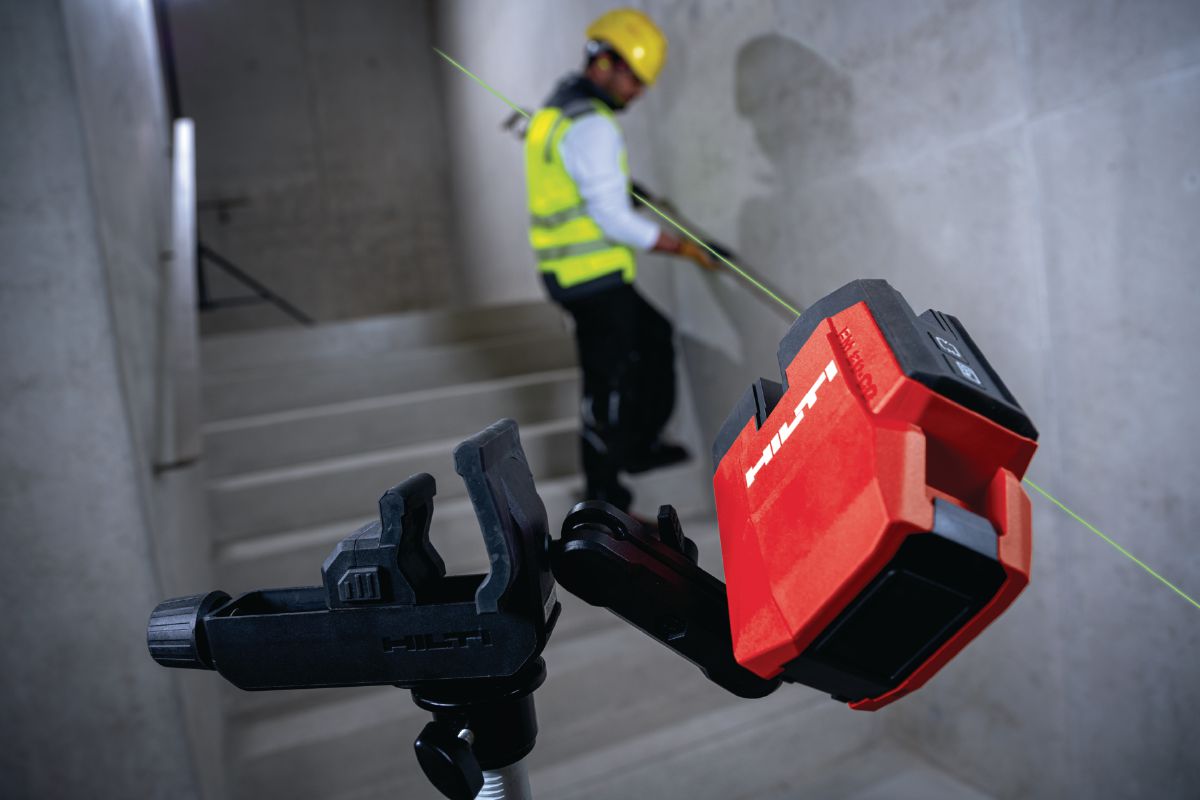

- Transferring track positions and fastening points from floors to ceilings (laser plumb bob)
- Transferring reference heights
PRODUCT INFORMATION

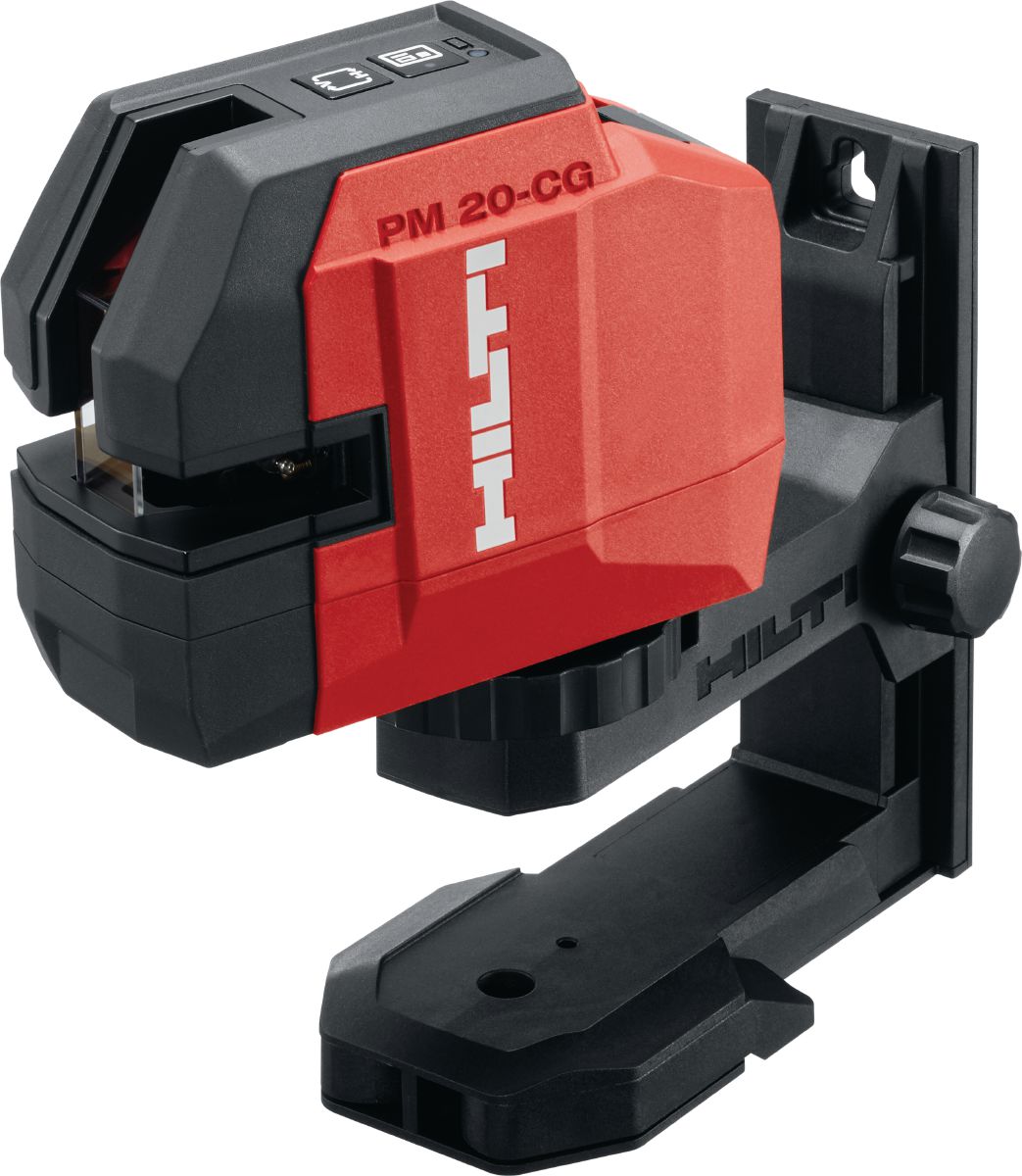

Combilaser PM 20-CG
- Item Number: 2322751
- # of items in Package: 1

Combilaser PM 20-CG A12
- Item Number: 2322752
- # of items in Package: 1
TECHNICAL DATA
- Maximum operating time: 8 h
- Battery type: 4 x 1.5 V (AA)
- Self-levelling range at room temperature: +/-4 °
- Self-levelling time :3s
- Horizontal fan angle: 200 °
- Vertical fan angle : 160 °
- IP protection class: IP 54 (EN 60529)
- Laser type; Line and point
