FEATURES & APPLICATIONS
Features
- Torque-controlled mechanical expansion anchor which allows immediate load application
- Raised impact section prevents thread damage during installation
- Drill bit size matches the anchor size for easy installation
- Suitable for pre- and through-fastening
- European Technical Assessment (ETA) option 7 approval for uncracked concrete

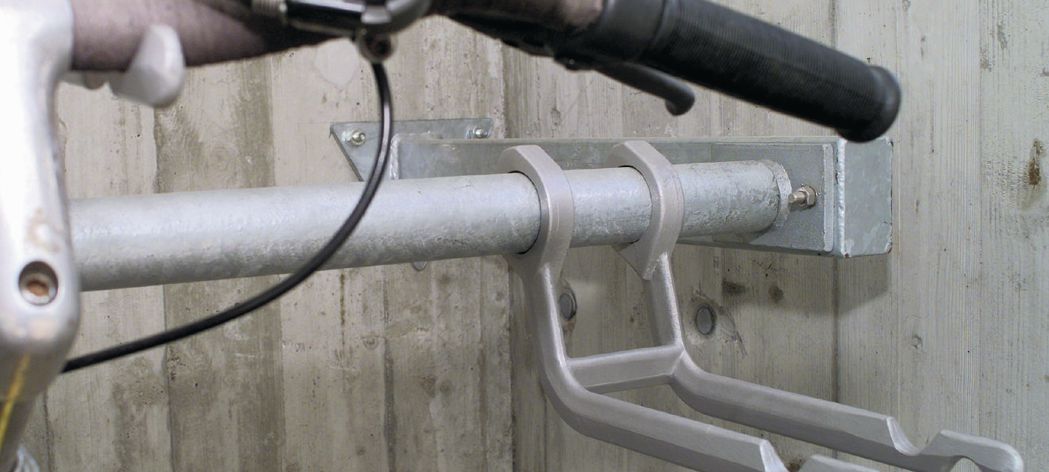

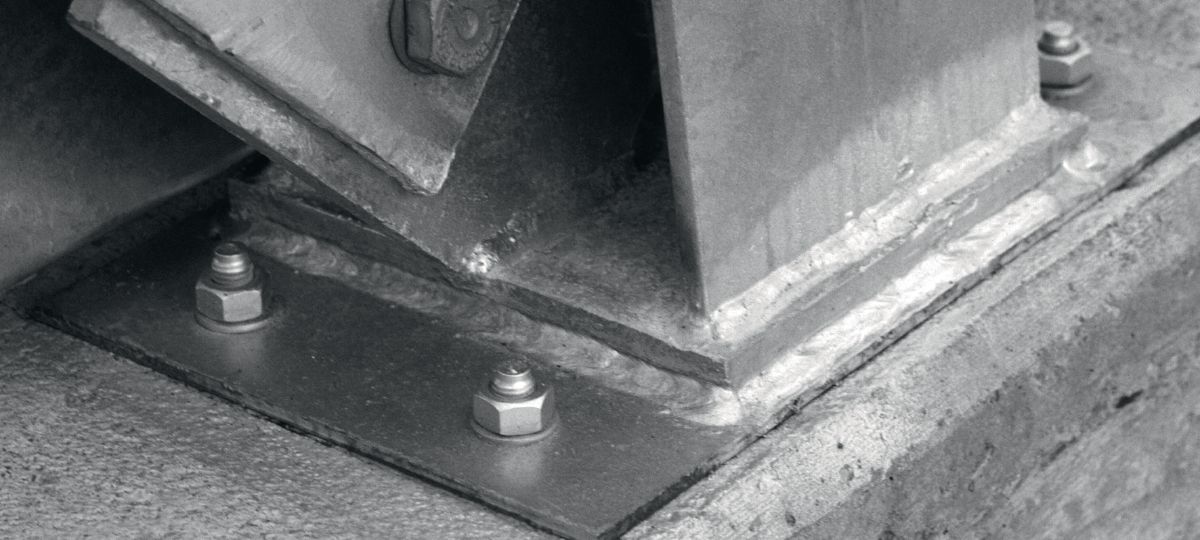

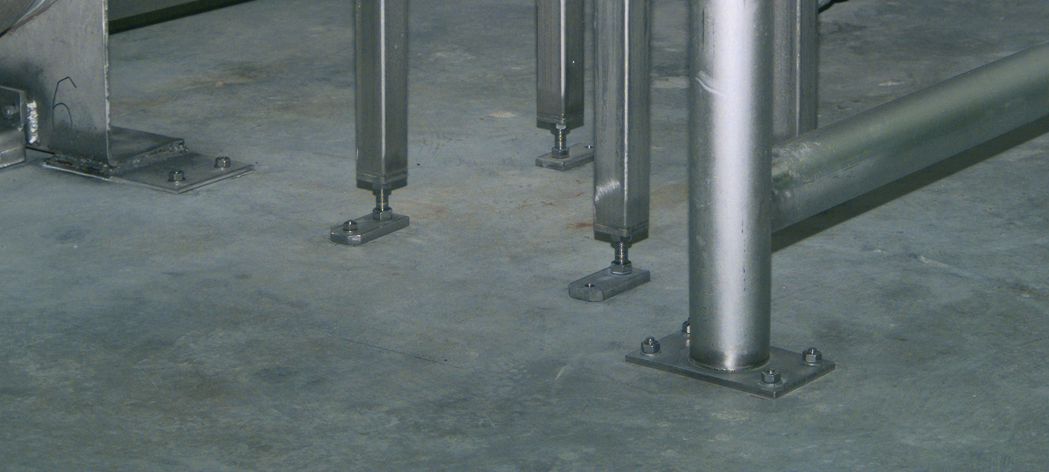

Applications
- Non-structural steel and architectural metalwork e.g. railings, grates, gates, staircases
- Conduits
PRODUCT INFORMATION
Stud anchor HSB M8x55/5
- Item Number: 2186690
- # of items in Package: 100
Stud anchor HSB M10x70/5
- Item Number: 2186694
- # of items in Package: 50
Stud anchor HSB M10x85/20
- Item Number: 2186695
- # of items in Package: 50
Stud anchor HSB M10x115/50
- Item Number: 2186697
- # of items in Package: 40
Stud anchor HSB M12x100/20
- Item Number: 2186700
- # of items in Package: 25
Stud anchor HSB M12x115/35
- Item Number: 2186701
- # of items in Package: 25
Stud anchor HSB M16x100/5
- Item Number: 2186704
- # of items in Package: 16
Stud anchor HSB M16x140/40
- Item Number: 2186706
- # of items in Package: 16
TECHNICAL DATA
- Material, corrosion : Carbon steel
- Head configuration : Externally threaded
- Approvals / test report : ETA
- Base materials : Concrete (non-cracked)
- Type of fastening : Pre-fastening, Through-fastening
- Installation tools : TE 6-A36 Cordless rotary hammer
- PROFIS software : No
