FEATURES & APPLICATIONS
Features
- Powerful high-frequency motor with electronic speed control for optimum power delivery over the entire diameter range

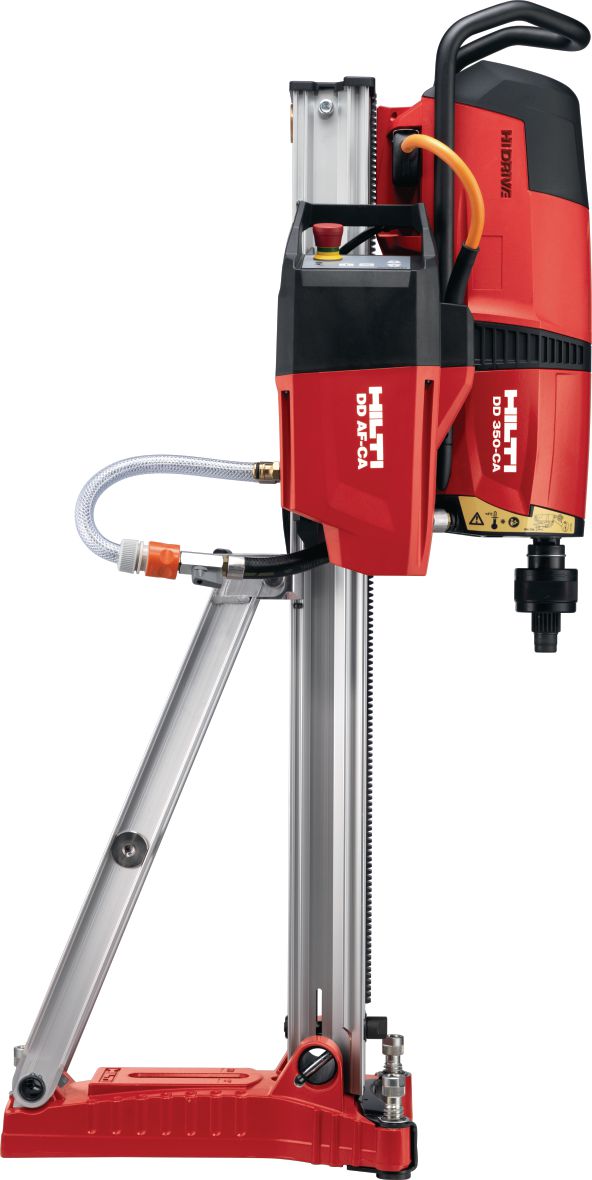

- Compatible with the DD AF-CA automatic feed unit that makes drilling a highly efficient and fully automated process
- Iron Boost: for a quick performance boost with increased torque when drilling through rebar
- Thanks to IP 55 water spray protection, drilling can be carried out under adverse conditions
- Operation within the optimum power band, for peak performance and longer core bit life, is easy with the aid of the LED power indicators
Applications
- Drilling through-holes and penetrations
- Blind holes for setting anchors or post-installed rebar
- Corner holes for sawing
- Manhole openings
- Stitch coring for installing cable trays
PRODUCT INFORMATION
Diamond coring tool DD 350-CA BL 230V
- Item Number: 2095267
- # of items in Package: 1
Diamond coring tool DD 350-CA BL 110V
- Item Number: 2095234
- # of items in Package: 1
TECHNICAL DATA
- Diameter range: 52 - 500 mm
- Base material : Concrete, Reinforced concrete
- Operation mode: Rig-based drilling system
- Number of gears :10
- No load RPM :gear 4: 619 rpm; gear 5: 571 rpm; gear 6: 524 rpm; gear 7: 405 rpm; gear 8: 357 rpm; gear 9: 286 rpm
- Weight according to EPTA Procedure 01/2003 :14.4 kg
- Weight of complete system : 35 kg
- Dimensions (LxWxH) : 608 x 192 x 216 mm
- A-weighted emission sound pressure level : 95 dB (A) 1
- Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD): 2.5 m/s²
