FEATURES & APPLICATIONS
Features
- Simplifies maintenance and retrofitting of cables – no power tools required
- Economical solution – sealant-free, ready-to-use and reusable
- One-sided wall installation possible
- Ideal for the temporary closing of empty core holes
- Acoustically tested according to ISO 140 and ASTM E90
Applications

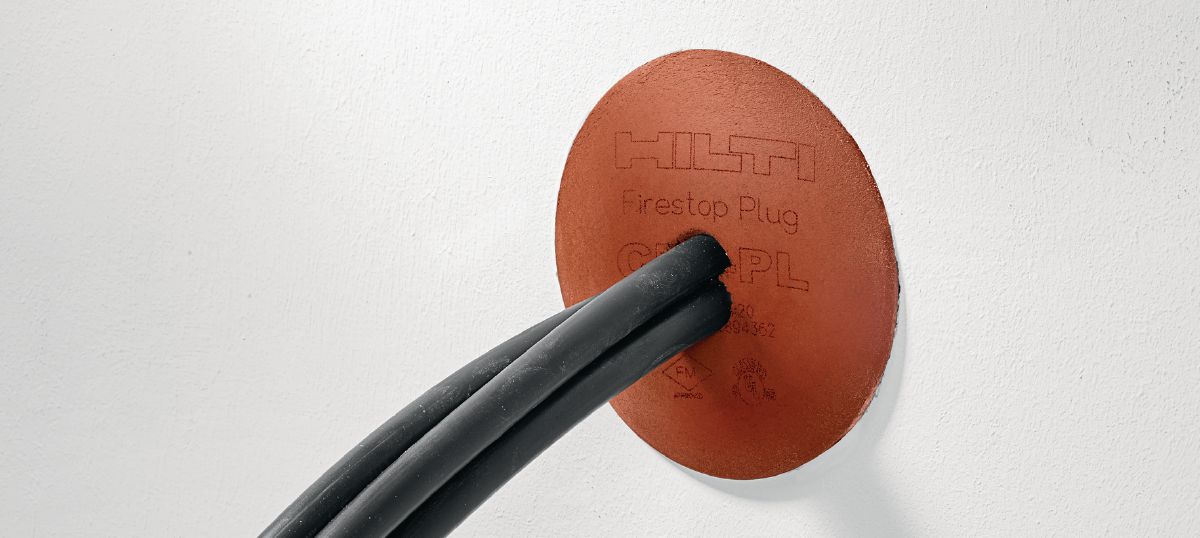

- Temporary or permanent sealing around cables and cable bundles in wall and floor openings
- Cables and cable bundles
- Conduits and conduit bundles
- Suitable for use with PVC sleeves in concrete cast-in applications
- Rooms with virtually dust- and fibre-free requirements and areas that often change services, such as server rooms, laboratories and hospitals
PRODUCT INFORMATION
Firestop plug CFS-PL 107
- Item Number: 2059530
- # of items in Package: 1 pc
Firestop plug CFS-PL 132
- Item Number: 2059531
- # of items in Package: 4 pc
Firestop plug CFS-PL 158
- Item Number: 2059532
- # of items in Package: 2 pc
Firestop plug CFS-PL 202
- Item Number: 2059533
- # of items in Package: 2 pc
TECHNICAL DATA
- Base materials: Concrete, Masonry, Drywall
- LEED VOC: 4.9 g/l
- Application temperature range: 5 - 40 °C
- Reaction to fire class (EN 13501-1) : E
- Product class: Ultimate
