FEATURES & APPLICATIONS
Features

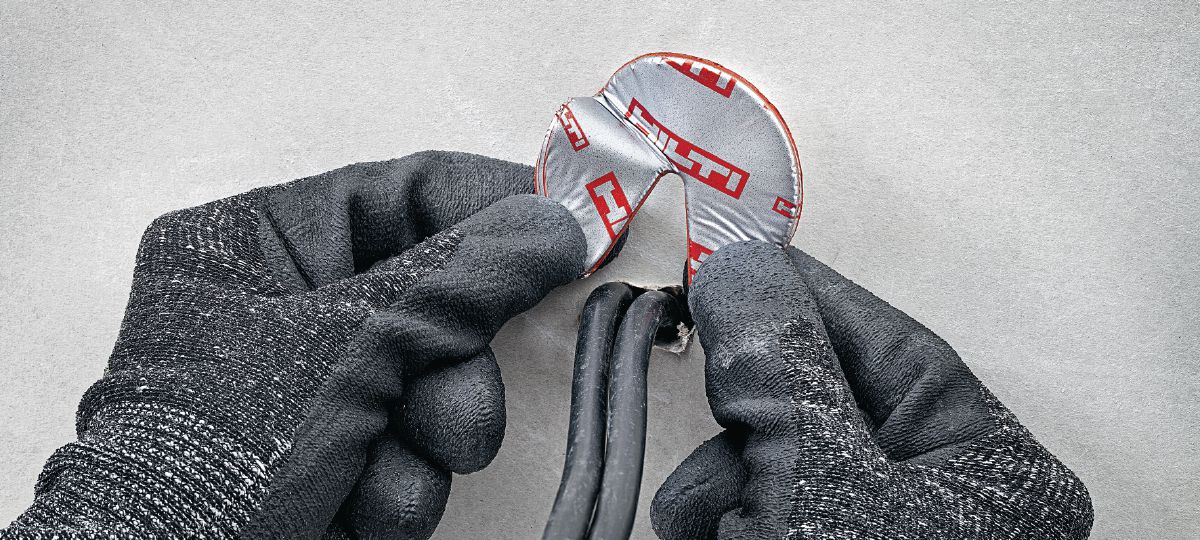

- Faster – putty discs can be installed in 10 seconds: peel, stick, done!
- Simpler – sealant-free and no backfill needed
- Versatile – fire barrier for virtually all applications involving low-voltage and mid-voltage cables, conduits (plastic and metal) and base materials (gypsum, concrete, masonry and wood)
- Suitable for sealing membrane or complete through-penetrations
- Acoustically tested according to ASTM E 90-09
Applications

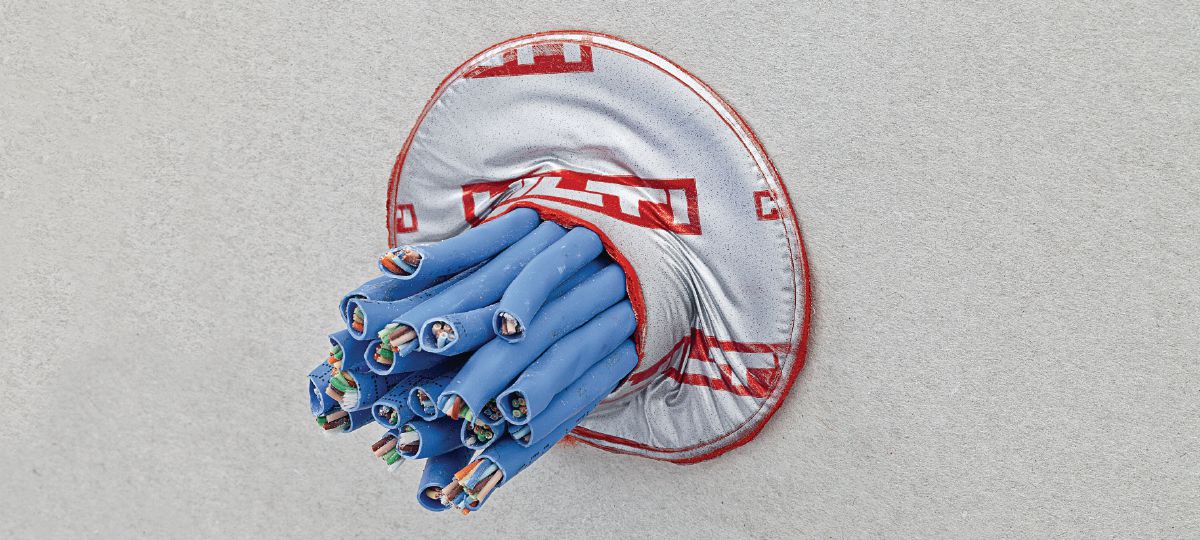

- Pre-formed firestopping solution for single cables and small cable bundles in openings up to max. 1"
- For use on plasterboard, masonry, concrete and wood floor / ceiling assemblies
- Suitable for a broad range of low-voltage and mid-voltage cables
- Suitable for electrical metal tubing and rigid or flexible steel conduits
- Small pipe penetrations: PE, copper, steel and cast iron
PRODUCT INFORMATION
Firestop putty disc CFS-D 1
- Item Number: 2116245
- # of items in Package:32pc
TECHNICAL DATA
- Base materials: Gypsum, Wood, Metal
- Colour: Red
- Surface burning characteristics UL 723 (ASTM E84): Flame spread: 0<BR>Smoke development: 5
- LEED VOC: 5 g/l
- Application temperature range: -0 - 40 °C
- Temperature resistance range: -20 - 40 °C
- Product class: Ultimate
